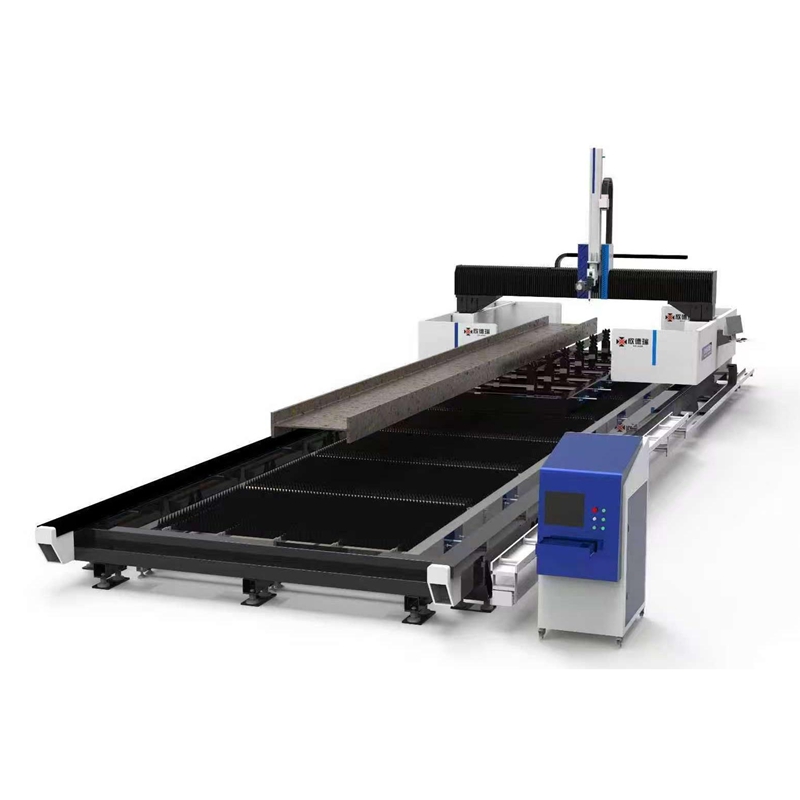

The 3D five-axis H-beam cutting machine is high-efficiency metal processing equipment that supports high-precision cutting in three-dimensional space. It is specially designed for machining complex-shaped workpieces such as H-beams and channel steels. Its core functions and technical advantages are as follows:
Core Functions & Technical Advantages
Diversified Cutting Operations: The equipment supports multiple cutting processes, including hole drilling, bevel cutting, and full-length severance cutting for H-beams.
Multi-Process Integration: It integrates cope cutting, marking, scribing and flat cutting into one single unit. All procedures, such as bolt hole cutting, welding bevel cutting, access hole processing, surface marking, scribing and full-length cutting, can be completed in one clamping setup, avoiding repeated positioning and improving overall processing consistency.
High Production Efficiency: Adopting a dual-station layout and high-speed processing configuration, the machine significantly improves cutting efficiency while reducing manual intervention and labor costs.
High-Precision Machining: Equipped with an advanced control system and RTCP technology, the equipment maintains stable and high precision during the cutting of complex profiles and special-shaped structural steel.
Intelligent Error Compensation: The built-in BCW scanner detects dimensional deviations of raw materials in real time and performs automatic error compensation, ensuring consistent machining accuracy even with imperfect incoming materials.
Intelligent Programming & Nesting: The system supports cyclic intelligent nesting to optimize material layout, maximize material utilization and minimize production scrap.
Strong Production Flexibility: The machine supports customized processing parameters for different H-beam and steel section specifications. It adapts to production demands of various scales, delivering stable and reliable performance for both small processing workshops and large manufacturing factories.
