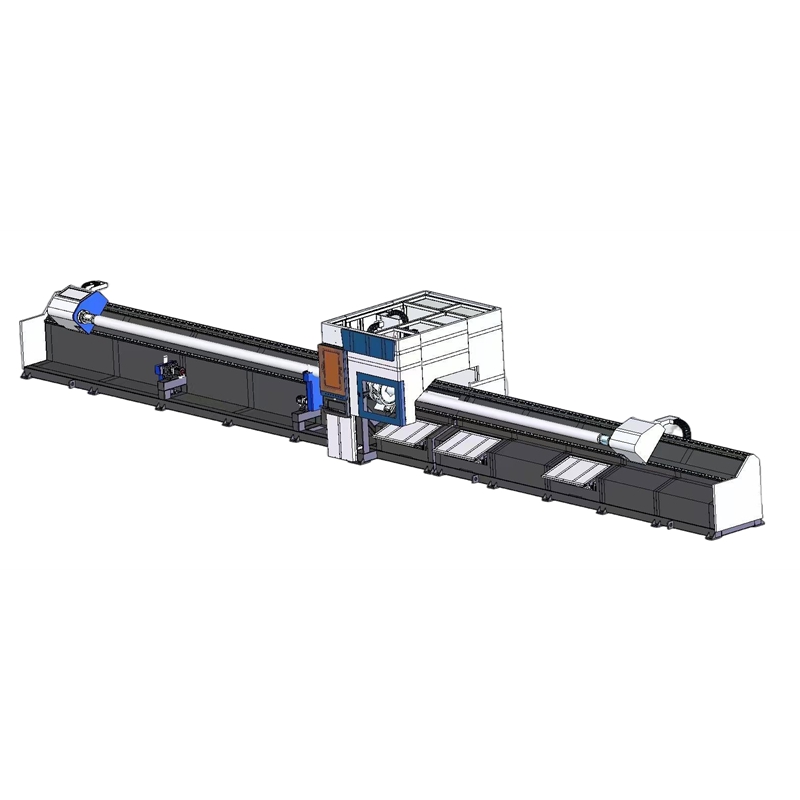

The side-mounted triple-chuck zero-tail-stock bevel laser tube cutting machine is intelligent processing equipment specially developed for heavy-duty tube machining. Equipped with an innovative coordinated triple-chuck clamping structure, a follow-up support system and professional bevel cutting technology, it realizes high-precision and zero-waste tube machining. It is widely applied in steel structure manufacturing, shipbuilding, construction machinery and other industries.
Core Structure & Technical Features
Coordinated Triple-Chuck Design: The front chuck fixes the tube, the middle chuck dynamically adjusts its position, and the rear chuck pulls the tube to achieve continuous full-length cutting, completely eliminating residual tube waste. Some models adopt double-sided middle chuck technology to further enhance clamping stability and machining consistency.
Follow-Up Support System: Multi-section servo follow-up material supports adjust the height in real time during operation, effectively preventing tube sagging and shaking and ensuring stable cutting accuracy. The automatic inclined unloading structure greatly improves blanking efficiency and overall production continuity.
Bevel Cutting Capacity: An optional ±45° bevel cutting head is available to support multiple bevel forming types, fully meeting diverse welding process requirements for different workpieces.
Machining Specifications: It supports tube diameters ranging from 10 mm to 530 mm, a maximum processing length of 12 meters, and a load capacity of up to 2000 kg, covering most heavy-duty tube processing scenarios.
Intelligent Control: The integrated intelligent bus system supports automatic loading, weld seam identification, 3D nesting and other intelligent functions, with an operation response acceleration of up to 0.8G, ensuring fast and stable operation.
Industry Compatibility: The machine is suitable for cutting round tubes, square tubes, angle steel, I-beams and other special-shaped profiles. It delivers outstanding performance in the high-efficiency processing of thick-walled tubes with a wall thickness of 40–350 mm.
Advantages & Economic Benefits
Zero-Tail-Stock Machining: Combining reverse cutting technology with full-length tube feeding, the equipment achieves a material utilization rate close to 100%, reducing comprehensive production costs by more than 30%.
Compatible with Heavy-Duty Tubes: Featuring a side-mounted low-center-of-gravity machine bed, the equipment boasts excellent structural stability. It is capable of processing ultra-long and heavy-duty tubes, perfectly adapting to high-standard processing demands in shipbuilding, bridge construction and other fields.
